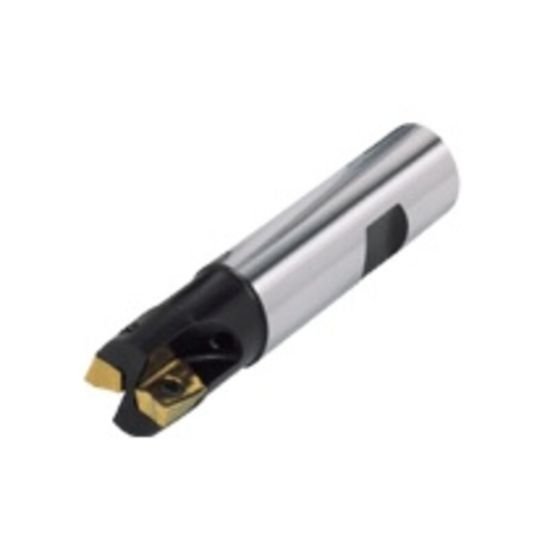

Picture of Iscar FHM90 E90AD-D1.0-2-W1.00 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

Iscar FHM90 E90AD-D1.0-2-W1.00 Milling Cutter 90.0° 1.000 Diameter Weldon 1.000 4.000 OAL 2 Flute

Part Number: ISC3331079 ISO: FHM90 E90AD-D1.0-2-W1.00 ANSI:FHM90 E90AD-D1.0-2-W1.00
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012868
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3331079 Parallelogram 90.0°, End Mill End Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002495
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 2
Tool Dia 1.0000 25.40MM
Insert Size Ic 15
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 1.0000 25.40MM
Depth Of Cut Max 0.5600
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 11.50°
Materials & Finish
Tool Material Steel
