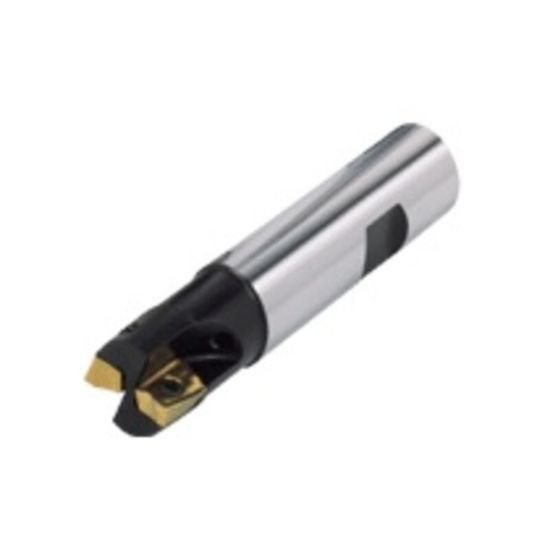

Picture of Iscar FHM90 E90A-D.50-1-W.62 Milling Cutter 90.0° 0.500 Diameter Weldon 0.625 3.250 OAL 1 Flute

Iscar FHM90 E90A-D.50-1-W.62 Milling Cutter 90.0° 0.500 Diameter Weldon 0.625 3.250 OAL 1 Flute

Part Number: ISC3331073 ISO: FHM90 E90A-D.50-1-W.62 ANSI:FHM90 E90A-D.50-1-W.62
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012864
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

ISCAR 3331073 Parallelogram 90.0°, End Mill End Mill Weldon 0.6250 Positive 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Type Positive
Coolant Type External
Insert Screw 7002441
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 1
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 10
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.3940
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 32.00°
Materials & Finish
Tool Material Steel
