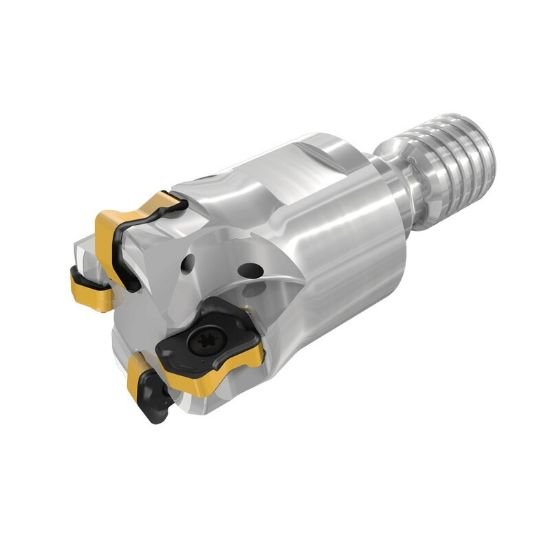

Picture of Iscar FFX4 ED35/1.38-5-M16-04 Milling Cutter 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

Iscar FFX4 ED35/1.38-5-M16-04 Milling Cutter 1.378 Diameter Screw On M16 2.362 OAL 5 Flute

Part Number: ISC3336692 ISO: FFX4 ED35/1.38-5-M16-04 ANSI:FFX4 ED35/1.38-5-M16-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012897
Vendor: Sussex Tool and Supply
$581.76

Description

ISCAR 3336692 Feed Mill Thread On SCREWM16 Negative 1.3780 35.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 2.3620 59.99MM
Flutes/Inserts 5
Tool Dia 1.3780 35.00MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 1.0870 27.61MM
Depth Of Cut Max 0.0310
Cut Dia Max 1.3780 35.00MM
Max Ramp Angle 1.10°
Materials & Finish
Tool Material Steel
