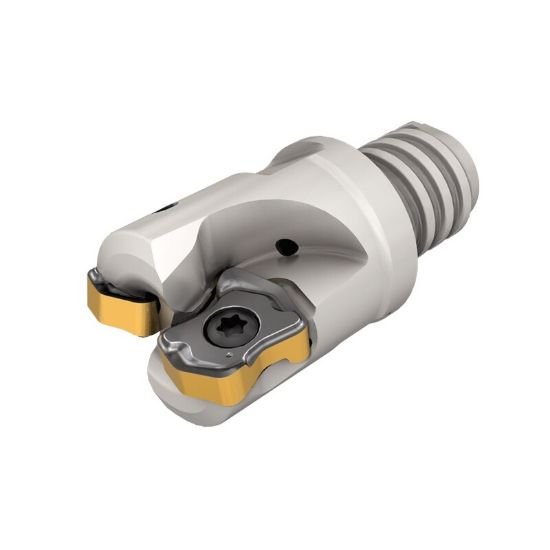

Picture of Iscar FFX4 ED20/.78-3-mmT12-04 Milling Cutter 0.787 Diameter Screw On T12 1.508 OAL 3 Flute

Iscar FFX4 ED20/.78-3-mmT12-04 Milling Cutter 0.787 Diameter Screw On T12 1.508 OAL 3 Flute

Part Number: ISC3380518 ISO: FFX4 ED20/.78-3-MMT12-04 ANSI:FFX4 ED20/.78-3-MMT12-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012963
Vendor: Sussex Tool and Supply
$459.84

Description

ISCAR 3380518 Feed Mill Thread On T12 Negative 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 1.5080 38.30MM
Flutes/Inserts 3
Tool Dia 0.7870 19.99MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.4960 12.60MM
Depth Of Cut Max 0.0310
Cut Dia Max 0.7870 19.99MM
Max Ramp Angle 2.70°
Materials & Finish
Tool Material Steel
