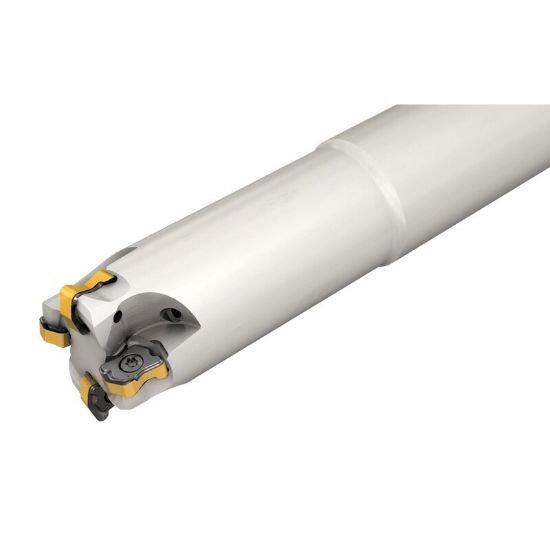

Picture of Iscar FFX4 ED1.25-5-2.5W1.00-04 Milling Cutter 1.250 Diameter Weldon 1.000 5.000 OAL 5 Flute

Iscar FFX4 ED1.25-5-2.5W1.00-04 Milling Cutter 1.250 Diameter Weldon 1.000 5.000 OAL 5 Flute

Part Number: ISC3336700 ISO: FFX4 ED1.25-5-2.5W1.00-04 ANSI:FFX4 ED1.25-5-2.5W1.00-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012905
Vendor: Sussex Tool and Supply
$520.20
ISCAR 3336700 Feed Mill End Mill Weldon 1.0000 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 5.0000 127.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Insert Size Ic 4
Cut Dia Min 0.9590 24.36MM
Coolant Type Through Hole
Depth Of Cut Max 0.0310
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7006316
Max Ramp Angle 1.20°
