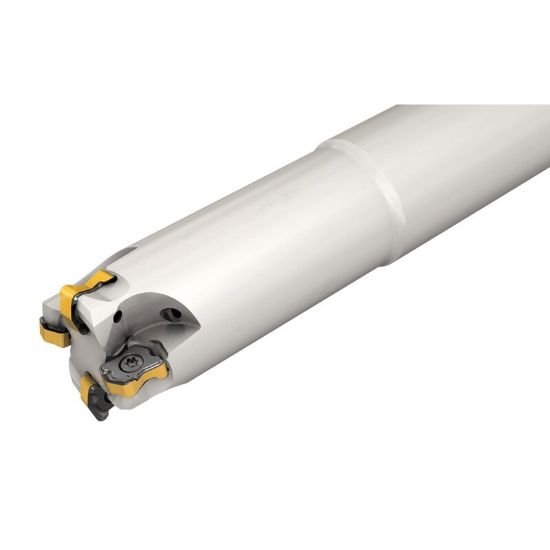

Picture of Iscar FFX4 ED1.00-4-3.0W1.00-04 Milling Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 4 Flute

Iscar FFX4 ED1.00-4-3.0W1.00-04 Milling Cutter 1.000 Diameter Weldon 1.000 5.000 OAL 4 Flute

Part Number: ISC3336699 ISO: FFX4 ED1.00-4-3.0W1.00-04 ANSI:FFX4 ED1.00-4-3.0W1.00-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012904
Vendor: Sussex Tool and Supply
$530.88

Description

ISCAR 3336699 Feed Mill End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.0000 25.40MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.7090 18.01MM
Depth Of Cut Max 0.0310
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 1.80°
Materials & Finish
Tool Material Steel
