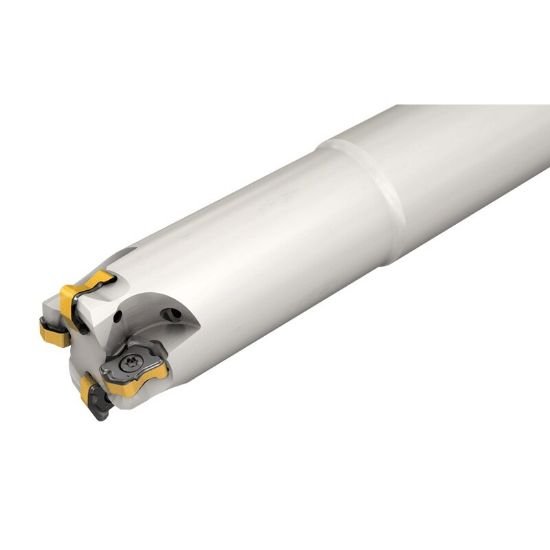

Picture of Iscar FFX4 ED0.75-3-2.0W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.250 OAL 3 Flute

Iscar FFX4 ED0.75-3-2.0W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.250 OAL 3 Flute

Part Number: ISC3336696 ISO: FFX4 ED0.75-3-2.0W0.75-04 ANSI:FFX4 ED0.75-3-2.0W0.75-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012901
Vendor: Sussex Tool and Supply
$437.76

Description

ISCAR 3336696 Feed Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.4590 11.66MM
Depth Of Cut Max 0.0310
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 2.90°
Materials & Finish
Tool Material Steel
