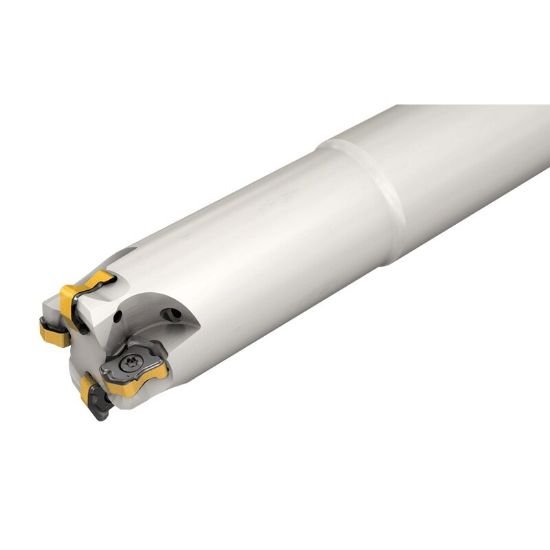

Picture of Iscar FFX4 ED0.50-1-1.2W0.50-04 Milling Cutter 0.500 Diameter Weldon 0.500 3.250 OAL 1 Flute

Iscar FFX4 ED0.50-1-1.2W0.50-04 Milling Cutter 0.500 Diameter Weldon 0.500 3.250 OAL 1 Flute

Part Number: ISC3336693 ISO: FFX4 ED0.50-1-1.2W0.50-04 ANSI:FFX4 ED0.50-1-1.2W0.50-04
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$344.64
SKU: 1012898

Description

ISCAR 3336693 Feed Mill End Mill Cylindrical 0.5000 Negative 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Other
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 3.2500 82.55MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 1
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.2090 5.30MM - #4
Depth Of Cut Max 0.0310
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 3.40°
Materials & Finish
Tool Material Steel
