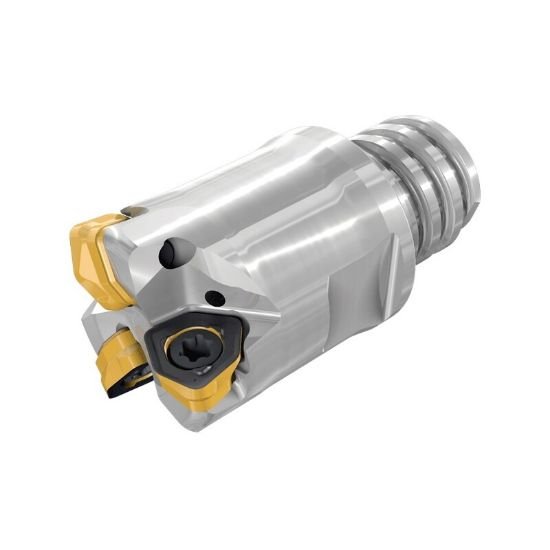

Picture of Iscar FFT3 EFMD12/.47-3mmT08-03 Milling Cutter 0.472 Diameter Screw On T08 0.886 OAL 3 Flute

Iscar FFT3 EFMD12/.47-3mmT08-03 Milling Cutter 0.472 Diameter Screw On T08 0.886 OAL 3 Flute

Part Number: ISC3346812 ISO: FFT3 EFMD12/.47-3MMT08-03 ANSI:FFT3 EFMD12/.47-3MMT08-03
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012934
Vendor: Sussex Tool and Supply
$374.40

Description

ISCAR 3346812 Trigon Feed Mill Thread On T08 Positive 0.4720 11.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 3348063
Dimensions & Sizing
Overall Length 0.8860 22.50MM
Flutes/Inserts 3
Tool Dia 0.4720 11.99MM
Insert Size Ic 3
Performance & Capacity
Cut Dia Min 0.2990 7.59MM
Depth Of Cut Max 0.0240
Cut Dia Max 0.4720 11.99MM
Max Ramp Angle 4.70°
Materials & Finish
Tool Material Steel
