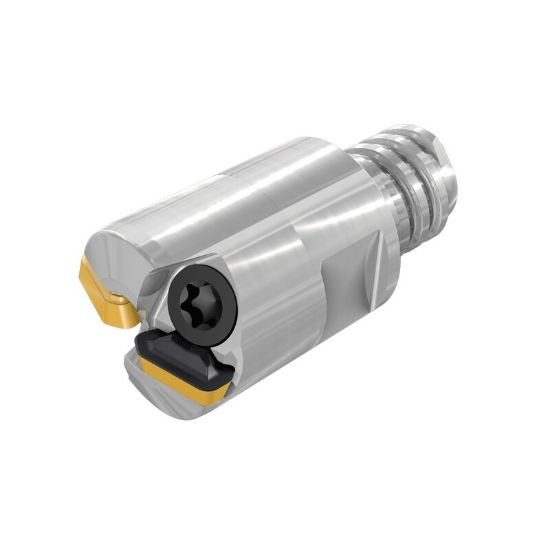

Picture of Iscar FFT3 EFMD10/.39-3mmT06-02 Milling Cutter 0.394 Diameter Screw On T06 0.642 OAL 3 Flute

Iscar FFT3 EFMD10/.39-3mmT06-02 Milling Cutter 0.394 Diameter Screw On T06 0.642 OAL 3 Flute

Part Number: ISC3346810 ISO: FFT3 EFMD10/.39-3MMT06-02 ANSI:FFT3 EFMD10/.39-3MMT06-02
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012932
Vendor: Sussex Tool and Supply
$359.04

Description

ISCAR 3346810 Triangle Feed Mill Thread On T06 Positive 0.3940 10.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 3348063
Dimensions & Sizing
Overall Length 0.6420 16.31MM
Flutes/Inserts 3
Tool Dia 0.3940 10.01MM
Insert Size Ic 2
Performance & Capacity
Cut Dia Min 0.1650 4.19MM
Depth Of Cut Max 0.0240
Cut Dia Max 0.3940 10.01MM
Max Ramp Angle 4.70°
Materials & Finish
Tool Material Steel
