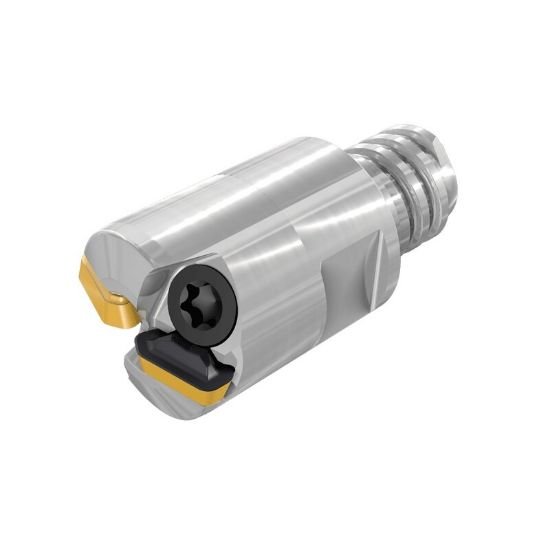

Picture of Iscar FFT3 EFMD08/.31-2mmT05-02 Milling Cutter 0.315 Diameter Screw On T05 0.659 OAL 2 Flute

Iscar FFT3 EFMD08/.31-2mmT05-02 Milling Cutter 0.315 Diameter Screw On T05 0.659 OAL 2 Flute

Part Number: ISC3346809 ISO: FFT3 EFMD08/.31-2MMT05-02 ANSI:FFT3 EFMD08/.31-2MMT05-02
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$328.32
SKU: 1012931

Description

ISCAR 3346809 Triangle Feed Mill Thread On T05 Positive 0.3150 8.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Coolant Type Through Hole
Insert Screw 3348063
Dimensions & Sizing
Overall Length 0.6590 16.74MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Insert Size Ic 2
Performance & Capacity
Cut Dia Min 0.0870 2.21MM
Depth Of Cut Max 0.0240
Cut Dia Max 0.3150 8.00MM
Max Ramp Angle 10.80°
Materials & Finish
Tool Material Steel
