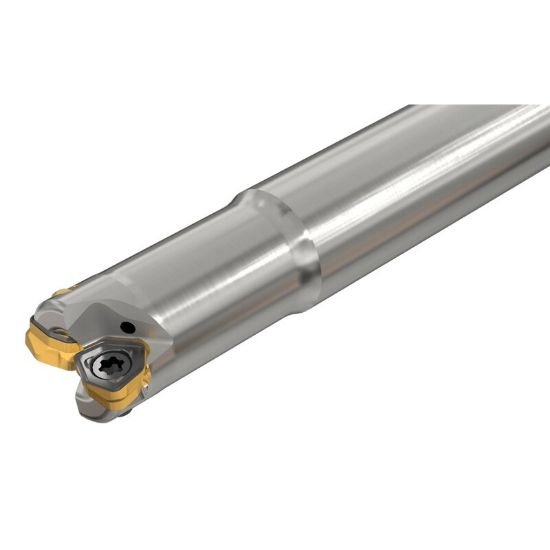

Picture of Iscar FFT3 EFMD.50-3-5.0C.50-03 Milling Cutter 0.500 Diameter Round 0.500 5.000 OAL 3 Flute

Iscar FFT3 EFMD.50-3-5.0C.50-03 Milling Cutter 0.500 Diameter Round 0.500 5.000 OAL 3 Flute

Part Number: ISC3343680 ISO: FFT3 EFMD.50-3-5.0C.50-03 ANSI:FFT3 EFMD.50-3-5.0C.50-03
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012915
Vendor: Sussex Tool and Supply
$356.16

Description

ISCAR 3343680 Trigon Feed Mill End Mill Cylindrical 0.5000 Negative 0.5000 12.70MM - 1/2 Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Non Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type External
Insert Screw 7006178
Dimensions & Sizing
Overall Length 5.0000 127.00MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 3
Tool Dia 0.5000 12.70MM - 1/2
Insert Size Ic 3
Performance & Capacity
Cut Dia Min 0.3230 8.20MM - P
Depth Of Cut Max 0.0240
Cut Dia Max 0.5000 12.70MM - 1/2
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
