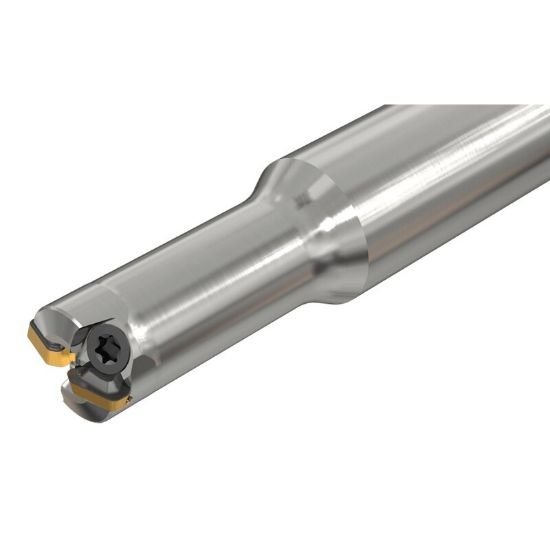

Picture of Iscar FFT3 EFM D10-3-070-C10-02 Milling Cutter 0.394 Diameter Round 0.393 2.756 OAL 3 Flute

Iscar FFT3 EFM D10-3-070-C10-02 Milling Cutter 0.394 Diameter Round 0.393 2.756 OAL 3 Flute

Part Number: ISC3346808 ISO: FFT3 EFM D10-3-070-C10-02 ANSI:FFT3 EFM D10-3-070-C10-02
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$321.60
SKU: 1012930

Description

ISCAR 3346808 Triangle Feed Mill End Mill Cylindrical 0.3937 Positive 0.3940 10.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Inter/Extern External
Coolant Type Through Hole
Insert Screw 3348063
Dimensions & Sizing
Overall Length 2.7560 70.00MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Tool Dia 0.3940 10.01MM
Insert Size Ic 2
Performance & Capacity
Cut Dia Min 0.1650 4.19MM
Depth Of Cut Max 0.0240
Cut Dia Max 0.3940 10.01MM
Max Ramp Angle 4.70°
Materials & Finish
Tool Material Steel
