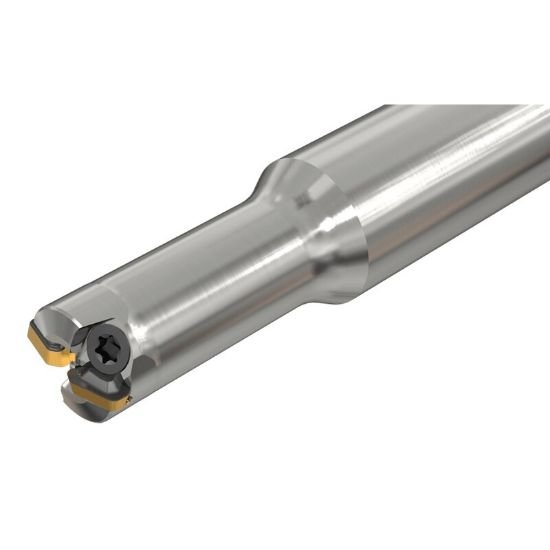

Picture of Iscar FFT3 EFM D08-2-060-C10-02 Milling Cutter 0.315 Diameter Round 0.393 2.362 OAL 2 Flute

Iscar FFT3 EFM D08-2-060-C10-02 Milling Cutter 0.315 Diameter Round 0.393 2.362 OAL 2 Flute

Part Number: ISC3334291 ISO: FFT3 EFM D08-2-060-C10-02 ANSI:FFT3 EFM D08-2-060-C10-02
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$312.96
SKU: 1012892

Description

ISCAR 3334291 Triangle Feed Mill End Mill Cylindrical 0.3937 Positive 0.3150 8.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Triangle
Insert Type Positive
Inter/Extern External
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 2.3620 59.99MM
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 2
Tool Dia 0.3150 8.00MM
Insert Size Ic 2
Performance & Capacity
Cut Dia Min 0.0870 2.21MM
Depth Of Cut Max 0.0310
Cut Dia Max 0.3150 8.00MM
Max Ramp Angle 10.80°
Materials & Finish
Tool Material Steel
