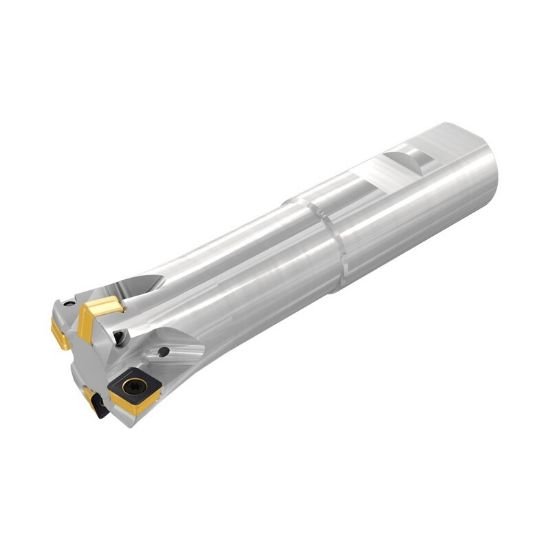

Picture of Iscar FFQ4 D1.50-5-3.0-W1.25-09 Milling Cutter 1.500 Diameter Weldon 1.250 5.300 OAL 5 Flute

Iscar FFQ4 D1.50-5-3.0-W1.25-09 Milling Cutter 1.500 Diameter Weldon 1.250 5.300 OAL 5 Flute

Part Number: ISC3323708 ISO: FFQ4 D1.50-5-3.0-W1.25-09 ANSI:FFQ4 D1.50-5-3.0-W1.25-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012862
Vendor: Sussex Tool and Supply
$635.52

Description

ISCAR 3323708 Square Feed Mill End Mill Weldon 1.2500 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type Through Hole
Insert Screw 3348063
Dimensions & Sizing
Overall Length 5.3000 134.62MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 0.9380 23.83MM
Depth Of Cut Max 0.0240
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 2.20°
Materials & Finish
Tool Material Steel
