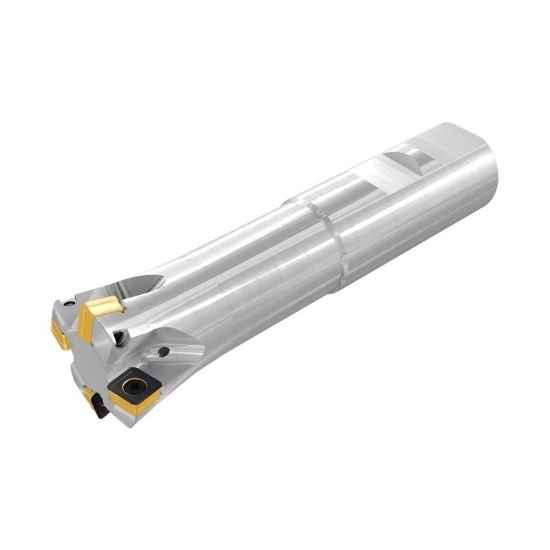

Picture of Iscar FFQ4 D1.25-4-2.5-W1.00-09 Milling Cutter 1.250 Diameter Weldon 1.000 4.800 OAL 4 Flute

Iscar FFQ4 D1.25-4-2.5-W1.00-09 Milling Cutter 1.250 Diameter Weldon 1.000 4.800 OAL 4 Flute

Part Number: ISC3323707 ISO: FFQ4 D1.25-4-2.5-W1.00-09 ANSI:FFQ4 D1.25-4-2.5-W1.00-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012861
Vendor: Sussex Tool and Supply
$498.24

Description

ISCAR 3323707 Square Feed Mill End Mill Weldon 1.0000 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006979
Dimensions & Sizing
Overall Length 4.8000 121.92MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 0.6890 17.50MM
Depth Of Cut Max 0.0470
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 3.30°
Materials & Finish
Tool Material Steel
