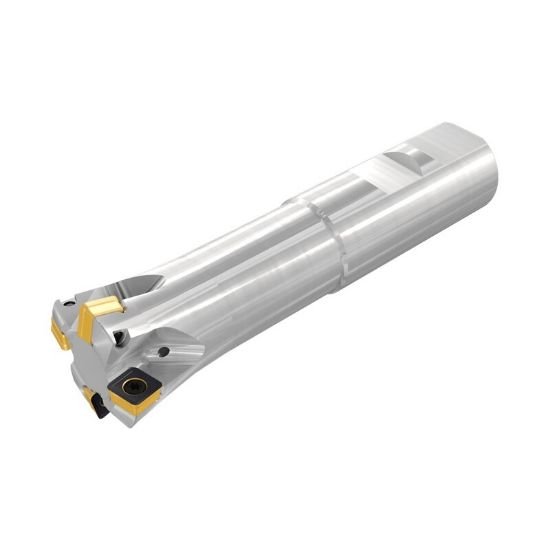

Picture of Iscar FFQ4 D0.87-2-1.7-W0.75-09 Milling Cutter 0.875 Diameter Weldon 0.750 3.800 OAL 2 Flute

Iscar FFQ4 D0.87-2-1.7-W0.75-09 Milling Cutter 0.875 Diameter Weldon 0.750 3.800 OAL 2 Flute

Part Number: ISC3323704 ISO: FFQ4 D0.87-2-1.7-W0.75-09 ANSI:FFQ4 D0.87-2-1.7-W0.75-09
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012859
Vendor: Sussex Tool and Supply
$411.84

Description

ISCAR 3323704 Square Feed Mill End Mill Weldon 0.7500 Positive 0.8750 22.23MM - 7/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7006979
Dimensions & Sizing
Overall Length 3.8000 96.52MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.8750 22.23MM - 7/8
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 0.3110 7.90MM
Depth Of Cut Max 0.0470
Cut Dia Max 0.8750 22.23MM - 7/8
Max Ramp Angle 8.00°
Materials & Finish
Tool Material Steel
