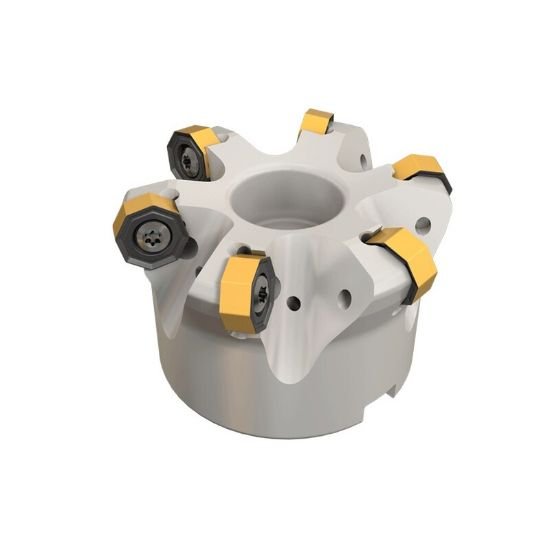

Picture of Iscar FF SOf 8/16 D3.0-07-1.00R Milling Cutter 3.000 Diameter Face Mill 1.000 1.768 OAL 7 Flute

Iscar FF SOf 8/16 D3.0-07-1.00R Milling Cutter 3.000 Diameter Face Mill 1.000 1.768 OAL 7 Flute

Part Number: ISC3105775 ISO: FF SOF 8/16 D3.0-07-1.00R ANSI:FF SOF 8/16 D3.0-07-1.00R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012365
Vendor: Sussex Tool and Supply
$882.00
ISCAR 3105775 Multi Feed Mill SHELL1.0000 Negative 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.7680 44.91MM
Coolant Thru Thru Coolant
Flutes/Inserts 7
Tool Dia 3.0000 76.20MM
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing
Insert Style SN, ON, OX
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Cut Dia Min 3.0000 76.20MM
Coolant Type Through Hole
Depth Of Cut Max 0.1060
Cut Dia Max 3.2110 81.56MM
Insert Screw 7004916
