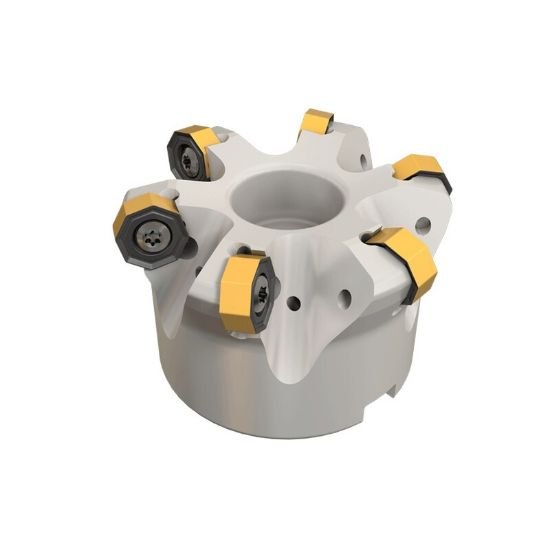

Picture of Iscar FF SOf 8/16 D2.5-06-1.00R Milling Cutter 2.500 Diameter Face Mill 1.000 1.768 OAL 6 Flute

Iscar FF SOf 8/16 D2.5-06-1.00R Milling Cutter 2.500 Diameter Face Mill 1.000 1.768 OAL 6 Flute

Part Number: ISC3105774 ISO: FF SOF 8/16 D2.5-06-1.00R ANSI:FF SOF 8/16 D2.5-06-1.00R
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012364
Vendor: Sussex Tool and Supply
$888.00

Description

ISCAR 3105774 Multi Feed Mill SHELL1.0000 Negative 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing
Insert Style SN, ON, OX
Insert Shape/Cutter Pocket Shape Multi
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.7680 44.91MM
Flutes/Inserts 6
Tool Dia 2.5000 63.50MM - 2-1/2
Performance & Capacity
Cut Dia Min 2.5000 63.50MM - 2-1/2
Depth Of Cut Max 0.1060
Cut Dia Max 2.7110 68.86MM
Materials & Finish
Tool Material Steel
