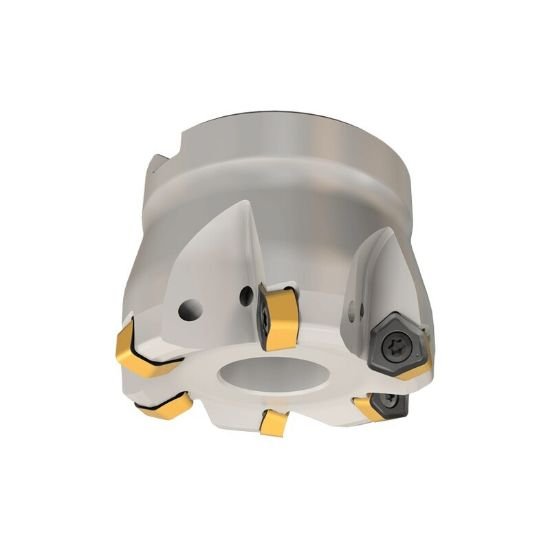

Picture of Iscar FF FWX D4.00-08-1.50-07 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Iscar FF FWX D4.00-08-1.50-07 Milling Cutter 4.000 Diameter Face Mill 1.500 2.000 OAL 8 Flute

Part Number: ISC3107278 ISO: FF FWX D4.00-08-1.50-07 ANSI:FF FWX D4.00-08-1.50-07
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012641
Vendor: Sussex Tool and Supply
$1,305.60

Description

ISCAR 3107278 Trigon Feed Mill SHELL1.5000 Negative 4.0000 101.60MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7007136
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 8
Tool Dia 4.0000 101.60MM
Insert Size Ic 7
Performance & Capacity
Cut Dia Min 3.4880 88.60MM
Depth Of Cut Max 0.0400
Cut Dia Max 4.0000 101.60MM
Materials & Finish
Tool Material Steel
