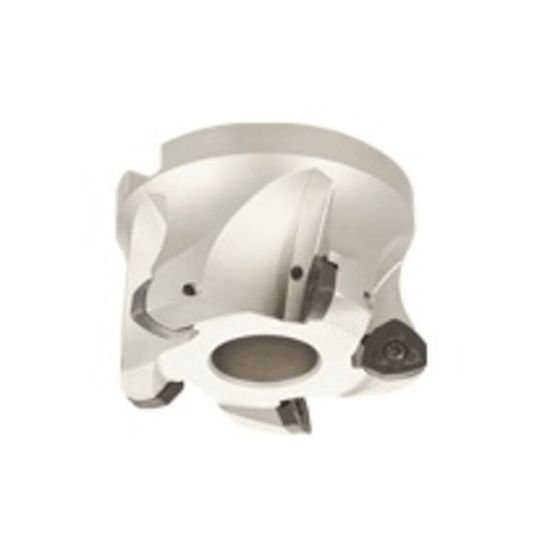

Picture of Iscar FF FW D5.00-1.50-09-C Milling Cutter 5.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Iscar FF FW D5.00-1.50-09-C Milling Cutter 5.000 Diameter Face Mill 1.500 2.000 OAL 7 Flute

Part Number: ISC3104430 ISO: FF FW D5.00-1.50-09-C ANSI:FF FW D5.00-1.50-09-C
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012151

Description

ISCAR 3104430 Trigon Feed Mill SHELL1.5000 Positive 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7002377
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Flutes/Inserts 7
Tool Dia 5.0000 127.00MM
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 4.1800 106.17MM
Depth Of Cut Max 0.1180
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
