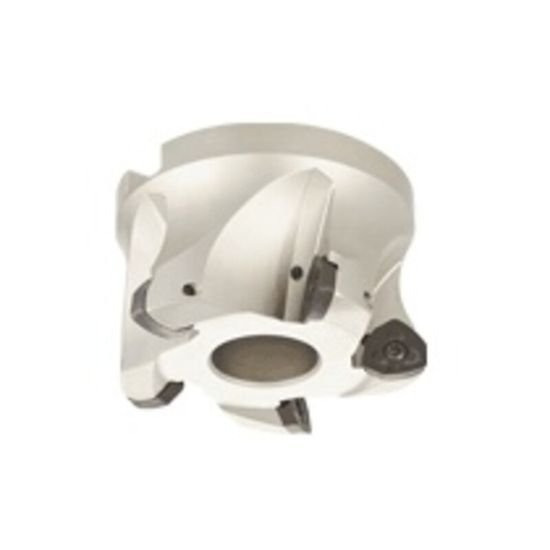

Picture of Iscar FF FW D3.00-1.25-09-C Milling Cutter 3.000 Diameter Face Mill 1.250 1.750 OAL 5 Flute

Iscar FF FW D3.00-1.25-09-C Milling Cutter 3.000 Diameter Face Mill 1.250 1.750 OAL 5 Flute

Part Number: ISC3103423 ISO: FF FW D3.00-1.25-09-C ANSI:FF FW D3.00-1.25-09-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012036
Vendor: Sussex Tool and Supply
$951.36

Description

ISCAR 3103423 Trigon Feed Mill SHELL1.2500 Positive 3.0000 76.20MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7004234
Dimensions & Sizing
Overall Length 1.7500 44.45MM
Flutes/Inserts 5
Tool Dia 3.0000 76.20MM
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 2.1800 55.37MM
Depth Of Cut Max 0.4000
Cut Dia Max 3.0000 76.20MM
Materials & Finish
Tool Material Steel
