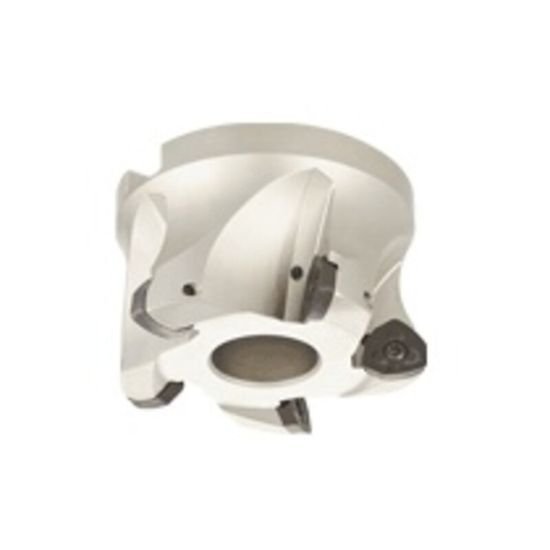

Picture of Iscar FF FW D2.50-1.00-09-C Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Iscar FF FW D2.50-1.00-09-C Milling Cutter 2.500 Diameter Face Mill 1.000 1.750 OAL 5 Flute

Part Number: ISC3103422 ISO: FF FW D2.50-1.00-09-C ANSI:FF FW D2.50-1.00-09-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012035
Vendor: Sussex Tool and Supply
$756.00
ISCAR 3103422 Trigon Feed Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.7500 44.45MM
Coolant Thru Thru Coolant
Flutes/Inserts 5
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Insert Size Ic 9
Cut Dia Min 1.6800 42.67MM
Coolant Type Through Hole
Depth Of Cut Max 0.0800
Cut Dia Max 2.5000 63.50MM - 2-1/2
Insert Screw 7002377
