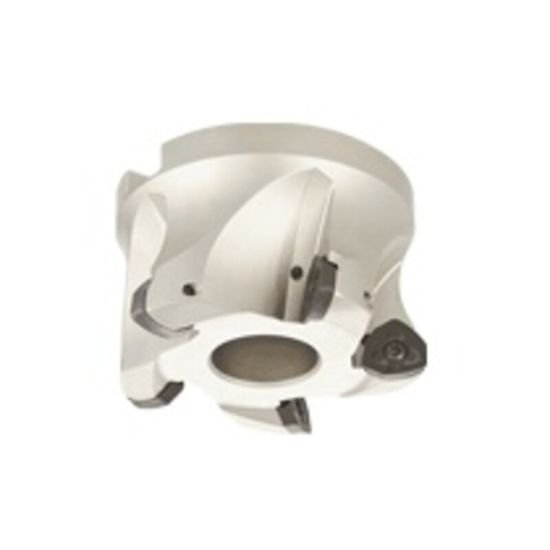

Picture of Iscar FF FW D1.50-0.50-06-C * Milling Cutter 1.500 Diameter Face Mill 0.500 1.400 OAL 4 Flute

Iscar FF FW D1.50-0.50-06-C * Milling Cutter 1.500 Diameter Face Mill 0.500 1.400 OAL 4 Flute

Part Number: ISC3103691 ISO: FF FW D1.50-0.50-06-C * ANSI:FF FW D1.50-0.50-06-C *
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1012082

Description

ISCAR 3103691 Trigon Feed Mill SHELL0.5000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7005034
Dimensions & Sizing
Overall Length 1.4000 35.56MM
Flutes/Inserts 4
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.9500 24.13MM
Depth Of Cut Max 0.2600
Cut Dia Max 1.5000 38.10MM - 1-1/2
Materials & Finish
Tool Material Steel
