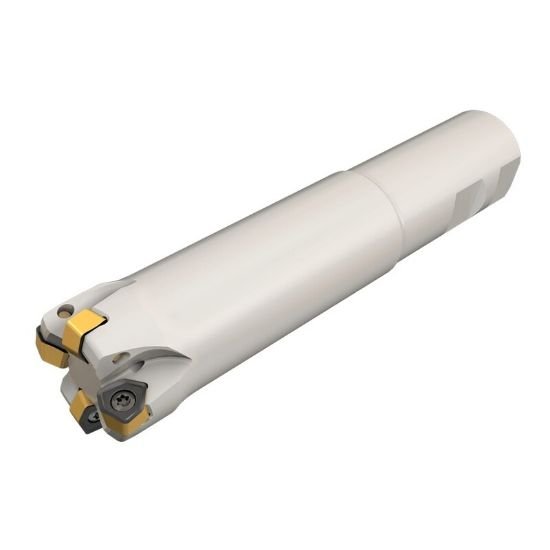

Picture of Iscar FF EWXD1.50-5-6.0W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 8.450 OAL 5 Flute

Iscar FF EWXD1.50-5-6.0W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 8.450 OAL 5 Flute

Part Number: ISC3105555 ISO: FF EWXD1.50-5-6.0W1.25-05 ANSI:FF EWXD1.50-5-6.0W1.25-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012332
Vendor: Sussex Tool and Supply
$655.68

Description

ISCAR 3105555 Trigon Feed Mill End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 8.4500 214.63MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 1.1100 28.19MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 3.00°
Materials & Finish
Tool Material Steel
