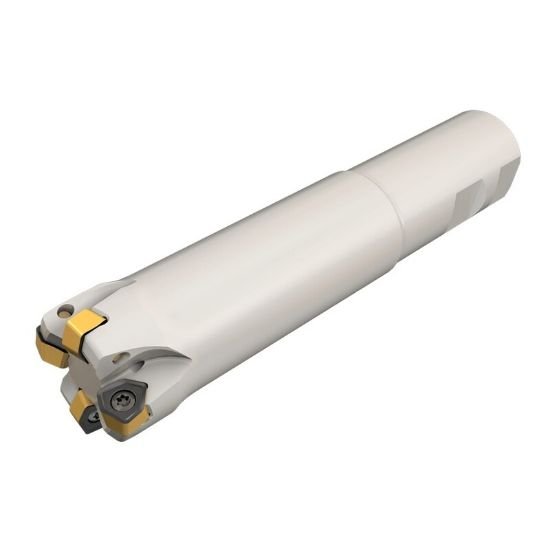

Picture of Iscar FF EWXD1.50-5-2.5W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 4.950 OAL 5 Flute

Iscar FF EWXD1.50-5-2.5W1.25-05 Milling Cutter 1.500 Diameter Weldon 1.250 4.950 OAL 5 Flute

Part Number: ISC3105553 ISO: FF EWXD1.50-5-2.5W1.25-05 ANSI:FF EWXD1.50-5-2.5W1.25-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012330
Vendor: Sussex Tool and Supply
$556.20
ISCAR 3105553 Trigon Feed Mill End Mill Weldon 1.2500 Negative 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 4.9500 125.73MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 5
Cut Dia Min 1.1100 28.19MM
Coolant Type Through Hole
Depth Of Cut Max 0.0430
Cut Dia Max 1.5000 38.10MM - 1-1/2
Insert Screw 7006042
Max Ramp Angle 3.00°
