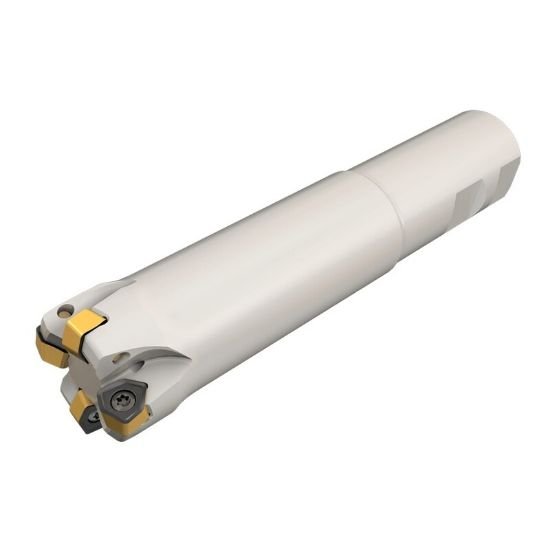

Picture of Iscar FF EWXD1.50-4-4.0W1.25-07 Milling Cutter 0.990 Diameter Weldon 1.250 6.450 OAL 4 Flute

Iscar FF EWXD1.50-4-4.0W1.25-07 Milling Cutter 0.990 Diameter Weldon 1.250 6.450 OAL 4 Flute

Part Number: ISC3107065

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012595
Vendor: Sussex Tool and Supply
$578.00
Products specifications
Attribute name Attribute value
Shank Or Pilot Diameter 1.2500 31.75MM - 1-1/4
Max Ramp Angle 4.60°
Insert Application General Purpose
Cutter Type Indexable Feed Mill
Depth Of Cut Max 0.0400
Overall Length 6.4500 163.83MM
Insert Size (IC) 7
Machine Side (Toolpost) WELDON1.2500
Insert Type Negative
Insert Screw 7000000
Insert Style WX
Type of Tool End Mill
Insert Or Tool TOOL
Insert Shape Or Cutter Pocket Shape TRIGON
Machine Side (Toolpost) Connection Type Weldon
Flutes Or Inserts 4
Shipping State TEXAS
Tool Material Steel
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Tool Diameter 0.9900 25.15MM
Cut Diameter Min 0.9900 25.15MM
Coolant Thru Thru Coolant
Cut Diameter Max 1.5000 38.10MM - 1-1/2
Made In USA No
Coolant Type Through Hole
