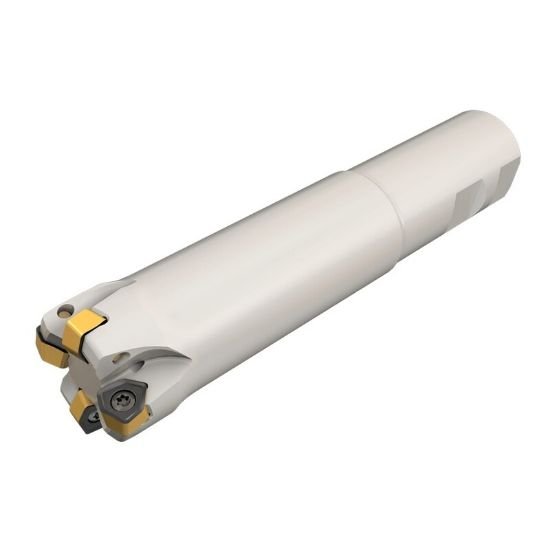

Picture of Iscar FF EWXD1.25-4-2.5W1.25-05 Milling Cutter 1.250 Diameter Weldon 1.250 4.950 OAL 4 Flute

Iscar FF EWXD1.25-4-2.5W1.25-05 Milling Cutter 1.250 Diameter Weldon 1.250 4.950 OAL 4 Flute

Part Number: ISC3105549 ISO: FF EWXD1.25-4-2.5W1.25-05 ANSI:FF EWXD1.25-4-2.5W1.25-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012326
Vendor: Sussex Tool and Supply
$504.00

Description

ISCAR 3105549 Trigon Feed Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 4.9500 125.73MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 0.8600 21.84MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
