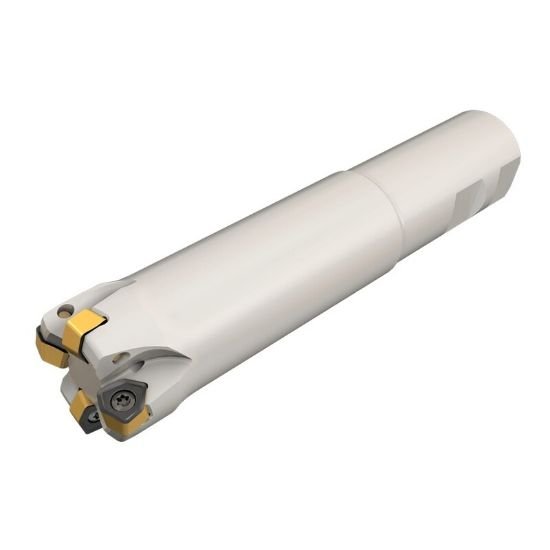

Picture of Iscar FF EWXD1.25-3-6.0W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 8.450 OAL 3 Flute

Iscar FF EWXD1.25-3-6.0W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 8.450 OAL 3 Flute

Part Number: ISC3106834 ISO: FF EWXD1.25-3-6.0W1.25-07 ANSI:FF EWXD1.25-3-6.0W1.25-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012562
Vendor: Sussex Tool and Supply
$460.00
ISCAR 3106834 Trigon 90.0°, End Mill, Feed Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.2500 31.75MM
Overall Length 8.4500 214.63MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 7
Cut Dia Min 0.7400 18.80MM
Coolant Type Through Hole
Depth Of Cut Max 0.0590
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 4305676
Cutting Edge Angle 90.0°
Max Ramp Angle 6.30°
