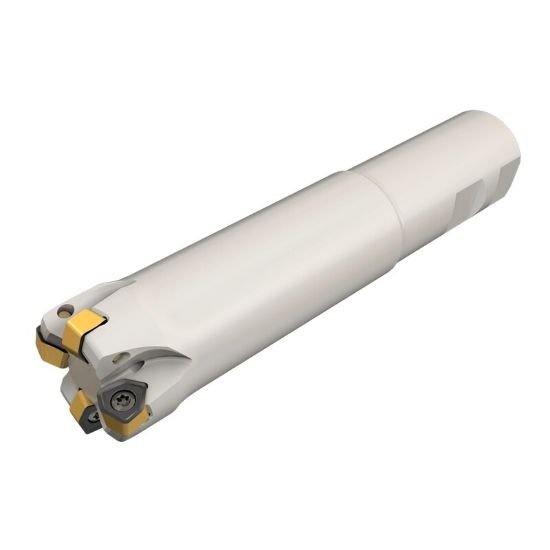

Picture of Iscar FF EWXD1.25-3-4.0W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.450 OAL 3 Flute

Iscar FF EWXD1.25-3-4.0W1.25-07 Milling Cutter 90.0° 1.250 Diameter Weldon 1.250 6.450 OAL 3 Flute

Part Number: ISC3106833 ISO: FF EWXD1.25-3-4.0W1.25-07 ANSI:FF EWXD1.25-3-4.0W1.25-07
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012561
Vendor: Sussex Tool and Supply
$498.24

Description

ISCAR 3106833 Trigon 90.0°, End Mill, Feed Mill End Mill Weldon 1.2500 Negative 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type End Mill, Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style WX
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 4305676
Dimensions & Sizing
Overall Length 6.4500 163.83MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 7
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 0.7400 18.80MM
Depth Of Cut Max 0.0590
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 6.30°
Materials & Finish
Tool Material Steel
