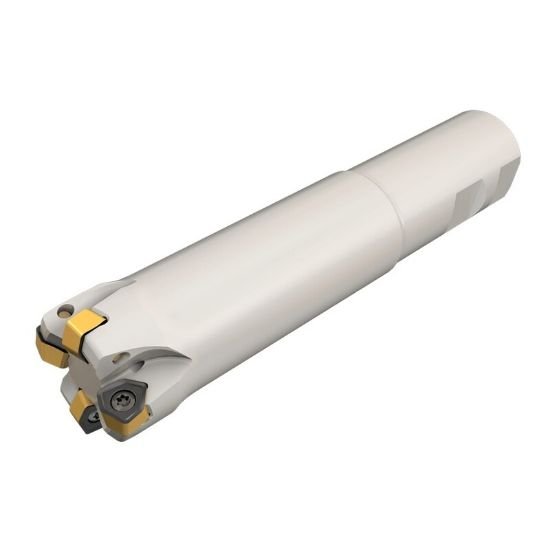

Picture of Iscar FF EWXD1.00-3-2.0W1.00-05 Milling Cutter 1.000 Diameter Weldon 1.000 4.450 OAL 3 Flute

Iscar FF EWXD1.00-3-2.0W1.00-05 Milling Cutter 1.000 Diameter Weldon 1.000 4.450 OAL 3 Flute

Part Number: ISC3105544 ISO: FF EWXD1.00-3-2.0W1.00-05 ANSI:FF EWXD1.00-3-2.0W1.00-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012321
Vendor: Sussex Tool and Supply
$470.40

Description

ISCAR 3105544 Trigon Feed Mill End Mill Weldon 1.0000 Negative 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 4.4500 113.03MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 0.6100 15.49MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.0000 25.40MM
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
