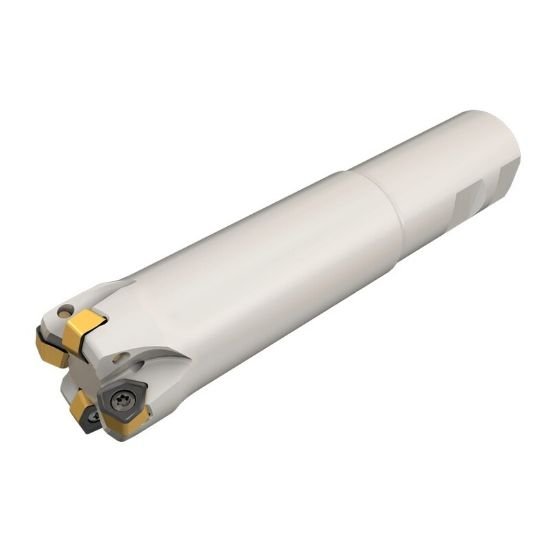

Picture of Iscar FF EWXD0.75-3-2.5W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.650 OAL 3 Flute

Iscar FF EWXD0.75-3-2.5W0.75-04 Milling Cutter 0.750 Diameter Weldon 0.750 4.650 OAL 3 Flute

Part Number: ISC3105631 ISO: FF EWXD0.75-3-2.5W0.75-04 ANSI:FF EWXD0.75-3-2.5W0.75-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012350
Vendor: Sussex Tool and Supply
$392.40
ISCAR 3105631 Trigon Feed Mill End Mill Weldon 0.7500 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.6500 118.11MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 4
Cut Dia Min 0.4580 11.63MM
Coolant Type Through Hole
Depth Of Cut Max 0.0300
Cut Dia Max 0.7500 19.05MM - 3/4
Insert Screw 7006316
Max Ramp Angle 5.00°
