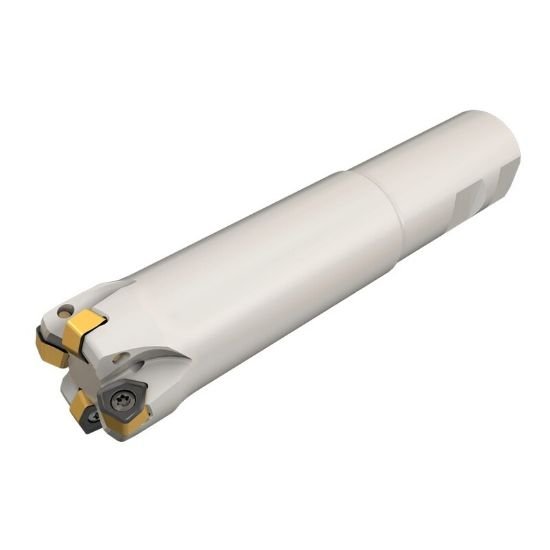

Picture of Iscar FF EWXD0.62-2-3.0W0.75-04 Milling Cutter 0.625 Diameter Weldon 0.750 5.350 OAL 2 Flute

Iscar FF EWXD0.62-2-3.0W0.75-04 Milling Cutter 0.625 Diameter Weldon 0.750 5.350 OAL 2 Flute

Part Number: ISC3105629 ISO: FF EWXD0.62-2-3.0W0.75-04 ANSI:FF EWXD0.62-2-3.0W0.75-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012348
Vendor: Sussex Tool and Supply
$419.52

Description

ISCAR 3105629 Trigon Feed Mill End Mill Weldon 0.7500 Negative 0.6250 15.88MM - 5/8Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 5.3500 135.89MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.3330 8.46MM
Depth Of Cut Max 0.0300
Cut Dia Max 0.6250 15.88MM - 5/8
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
