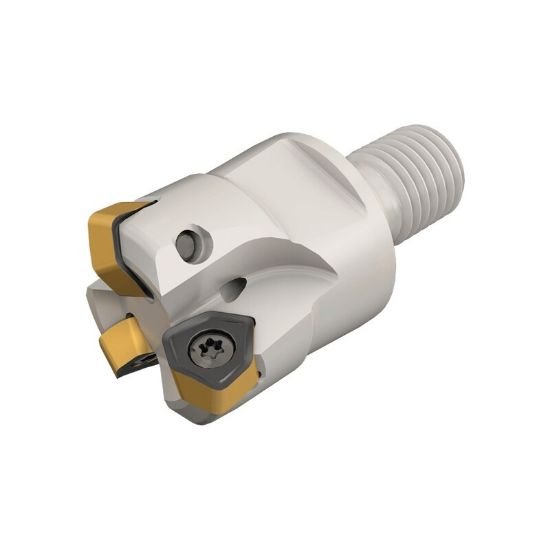

Picture of Iscar FF EWX D40-5-M16-05 Milling Cutter 1.575 Diameter Screw On M16 2.559 OAL 5 Flute

Iscar FF EWX D40-5-M16-05 Milling Cutter 1.575 Diameter Screw On M16 2.559 OAL 5 Flute

Part Number: ISC3105535 ISO: FF EWX D40-5-M16-05 ANSI:FF EWX D40-5-M16-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012320
Vendor: Sussex Tool and Supply
$593.28

Description

ISCAR 3105535 Trigon Feed Mill Thread On SCREWM16 Negative 1.5750 40.01MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 2.5590 65.00MM
Flutes/Inserts 5
Tool Dia 1.5750 40.01MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 1.1810 30.00MM
Depth Of Cut Max 0.0430
Cut Dia Max 1.5750 40.01MM
Max Ramp Angle 2.80°
Materials & Finish
Tool Material Steel
