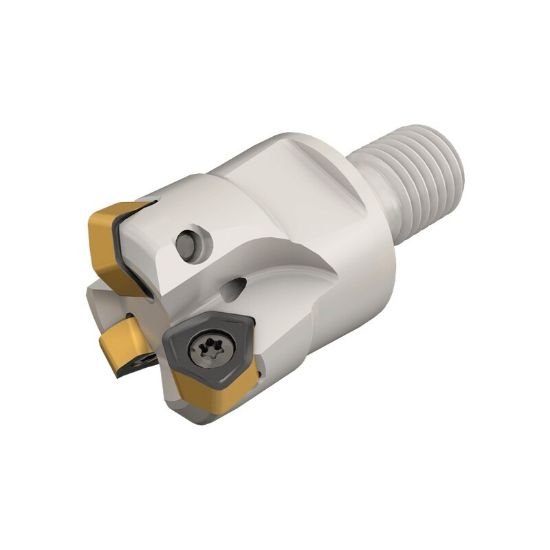

Picture of Iscar FF EWX D35-4-M16-05 Milling Cutter 1.378 Diameter Screw On M16 2.362 OAL 4 Flute

Iscar FF EWX D35-4-M16-05 Milling Cutter 1.378 Diameter Screw On M16 2.362 OAL 4 Flute

Part Number: ISC3105533 ISO: FF EWX D35-4-M16-05 ANSI:FF EWX D35-4-M16-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012319
Vendor: Sussex Tool and Supply
$529.92

Description

ISCAR 3105533 Trigon Feed Mill Thread On SCREWM16 Negative 1.3780 35.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 2.3620 59.99MM
Flutes/Inserts 4
Tool Dia 1.3780 35.00MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 0.9840 24.99MM
Depth Of Cut Max 0.0390
Cut Dia Max 1.3780 35.00MM
Max Ramp Angle 3.50°
Materials & Finish
Tool Material Steel
