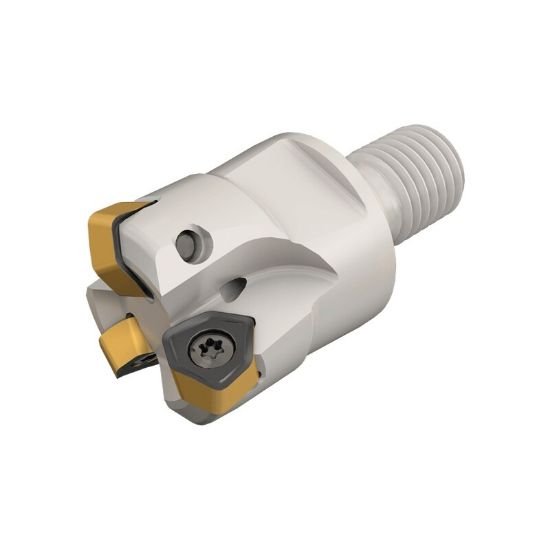

Picture of Iscar FF EWX D32-4-M16-05 Milling Cutter 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

Iscar FF EWX D32-4-M16-05 Milling Cutter 1.260 Diameter Screw On M16 2.362 OAL 4 Flute

Part Number: ISC3105525 ISO: FF EWX D32-4-M16-05 ANSI:FF EWX D32-4-M16-05
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012318
Vendor: Sussex Tool and Supply
$504.00

Description

ISCAR 3105525 Trigon Feed Mill Thread On SCREWM16 Negative 1.2600 32.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006042
Dimensions & Sizing
Overall Length 2.3620 59.99MM
Flutes/Inserts 4
Tool Dia 1.2598 32.00MM
Insert Size Ic 5
Performance & Capacity
Cut Dia Min 0.8660 22.00MM
Depth Of Cut Max 0.0390
Cut Dia Max 1.2600 32.00MM
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
