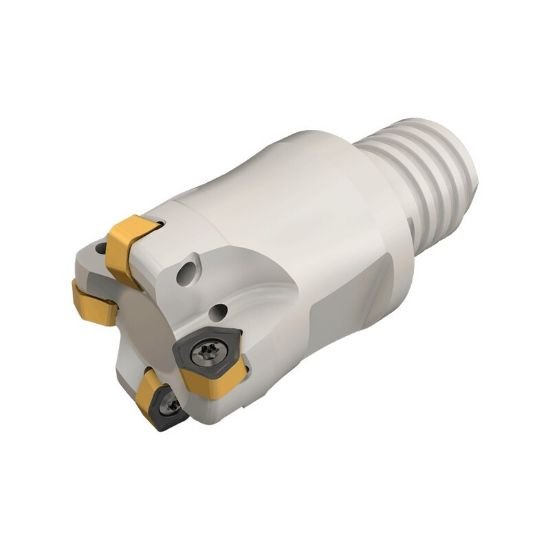

Picture of Iscar FF EWX D25-4-mmT15-04 Milling Cutter 0.984 Diameter Screw On T15 1.850 OAL 4 Flute

Iscar FF EWX D25-4-mmT15-04 Milling Cutter 0.984 Diameter Screw On T15 1.850 OAL 4 Flute

Part Number: ISC3106376 ISO: FF EWX D25-4-MMT15-04 ANSI:FF EWX D25-4-MMT15-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012459
Vendor: Sussex Tool and Supply
$520.32

Description

ISCAR 3106376 Trigon Feed Mill Thread On T15 Negative 0.9840 24.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7000000
Dimensions & Sizing
Overall Length 1.8500 46.99MM
Flutes/Inserts 4
Tool Dia 0.9840 24.99MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.6930 17.60MM
Depth Of Cut Max 2.3200
Cut Dia Max 0.9840 24.99MM
Max Ramp Angle 3.30°
Materials & Finish
Tool Material Steel
