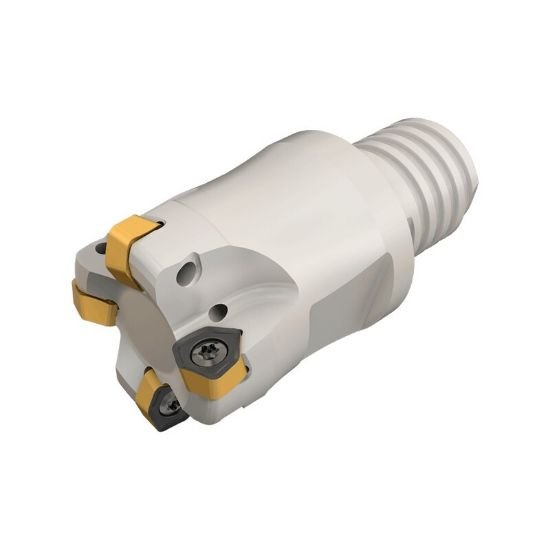

Picture of Iscar FF EWX D20-3-mmT12-04 Milling Cutter 0.787 Diameter Screw On T12 1.528 OAL 3 Flute

Iscar FF EWX D20-3-mmT12-04 Milling Cutter 0.787 Diameter Screw On T12 1.528 OAL 3 Flute

Part Number: ISC3105626 ISO: FF EWX D20-3-MMT12-04 ANSI:FF EWX D20-3-MMT12-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012345
Vendor: Sussex Tool and Supply
$443.52

Description

ISCAR 3105626 Trigon Feed Mill Thread On T12 Negative 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 1.5280 38.81MM
Flutes/Inserts 3
Tool Dia 0.7870 19.99MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.4960 12.60MM
Depth Of Cut Max 0.0300
Cut Dia Max 0.7870 19.99MM
Max Ramp Angle 4.80°
Materials & Finish
Tool Material Steel
