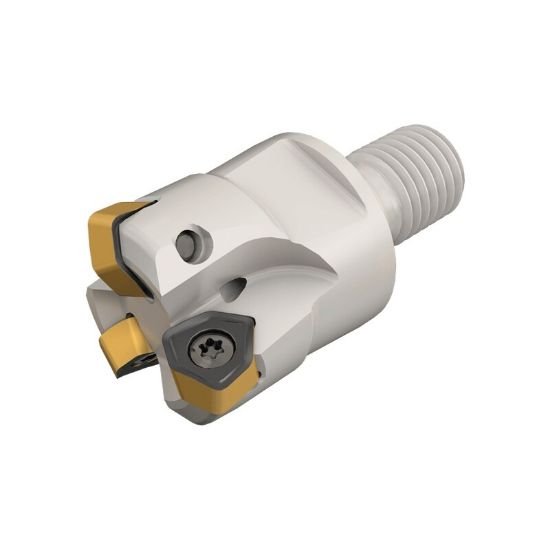

Picture of Iscar FF EWX D20-3-M10-04 Milling Cutter 0.787 Diameter Screw On M10 1.772 OAL 3 Flute

Iscar FF EWX D20-3-M10-04 Milling Cutter 0.787 Diameter Screw On M10 1.772 OAL 3 Flute

Part Number: ISC3105625 ISO: FF EWX D20-3-M10-04 ANSI:FF EWX D20-3-M10-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012344
Vendor: Sussex Tool and Supply
$392.40
ISCAR 3105625 Trigon Feed Mill Thread On SCREWM10 Negative 0.7870 19.99MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Screw On
Mach Side Connection Size M10
Overall Length 1.7720 45.01MM
Coolant Thru Thru Coolant
Flutes/Inserts 3
Tool Dia 0.7870 19.99MM
Type Of Tool Thread On
Insert/Tool TOOL
Insert Application General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Insert Size Ic 4
Cut Dia Min 0.4960 12.60MM
Coolant Type Through Hole
Depth Of Cut Max 0.0310
Cut Dia Max 0.7870 19.99MM
Insert Screw 7006316
Max Ramp Angle 4.80°
