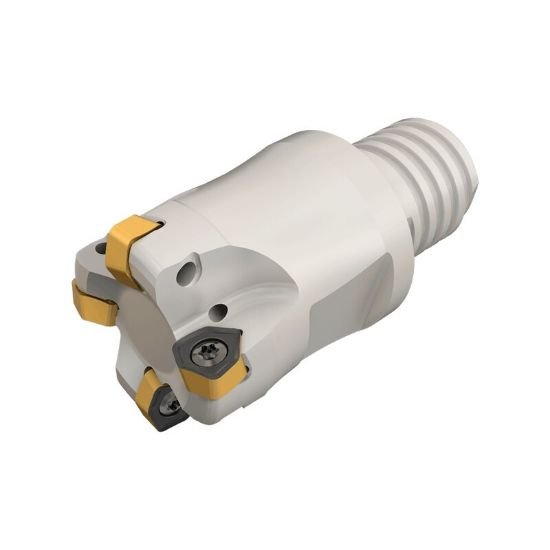

Picture of Iscar FF EWX D16-2-mmT10-04 Milling Cutter 0.630 Diameter Screw On M10 1.230 OAL 2 Flute

Iscar FF EWX D16-2-mmT10-04 Milling Cutter 0.630 Diameter Screw On M10 1.230 OAL 2 Flute

Part Number: ISC3105624 ISO: FF EWX D16-2-MMT10-04 ANSI:FF EWX D16-2-MMT10-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012343
Vendor: Sussex Tool and Supply
$395.52

Description

ISCAR 3105624 Trigon Feed Mill Thread On SCREWM10 Negative 0.6300 16.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7006316
Dimensions & Sizing
Overall Length 1.2300 31.24MM
Flutes/Inserts 2
Tool Dia 0.6300 16.00MM
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.3390 8.61MM - R
Depth Of Cut Max 0.0310
Cut Dia Max 0.6300 16.00MM
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
