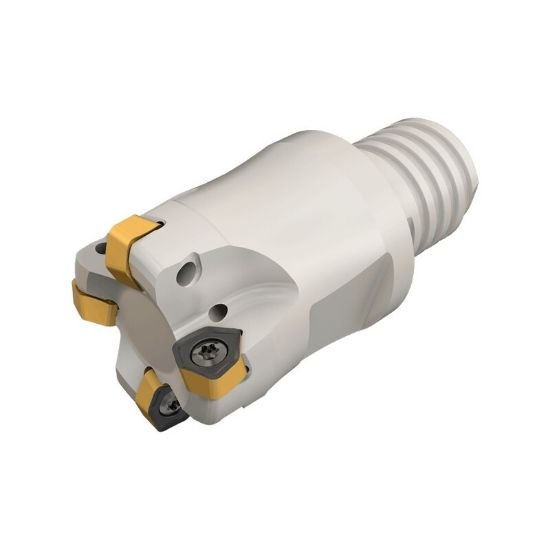

Picture of Iscar FF EWX D0.75-3-mmT12-04 Milling Cutter 0.750 Diameter Screw On T12 1.540 OAL 3 Flute

Iscar FF EWX D0.75-3-mmT12-04 Milling Cutter 0.750 Diameter Screw On T12 1.540 OAL 3 Flute

Part Number: ISC3105634 ISO: FF EWX D0.75-3-MMT12-04 ANSI:FF EWX D0.75-3-MMT12-04
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012353
Vendor: Sussex Tool and Supply
$443.52

Description

ISCAR 3105634 Trigon Feed Mill Thread On T12 Negative 0.7500 19.05MM - 3/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Thread On
Insert/Tool TOOL
Cut Type General Purpose
Insert Style H
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Negative
Coolant Type Through Hole
Insert Screw 7004916
Dimensions & Sizing
Overall Length 1.5400 39.12MM
Flutes/Inserts 3
Tool Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Performance & Capacity
Cut Dia Min 0.4600 11.68MM
Depth Of Cut Max 0.1140
Cut Dia Max 0.7500 19.05MM - 3/4
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
