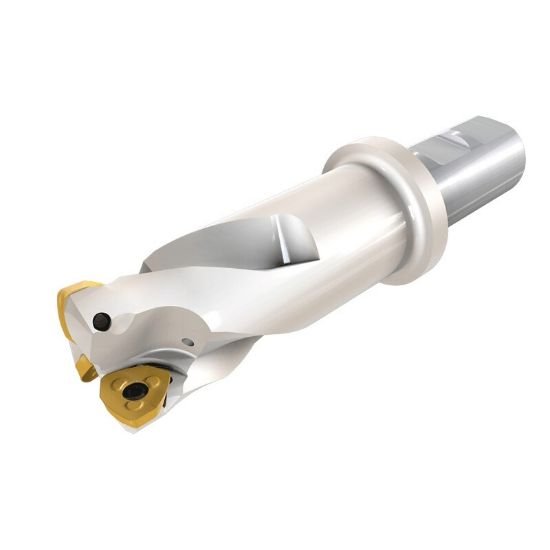

Picture of Iscar FF EW D1.5-2.5-CF4-09-C Milling Cutter 1.500 Diameter Clickfit 1.574 4.470 OAL 3 Flute

Iscar FF EW D1.5-2.5-CF4-09-C Milling Cutter 1.500 Diameter Clickfit 1.574 4.470 OAL 3 Flute

Part Number: ISC3103480 ISO: FF EW D1.5-2.5-CF4-09-C ANSI:FF EW D1.5-2.5-CF4-09-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012054
Vendor: Sussex Tool and Supply
$600.96

Description

ISCAR 3103480 Trigon Feed Mill Quick Change CF4 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool Quick Change
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7000216
Dimensions & Sizing
Overall Length 4.4700 113.54MM
Shank/Pilot Dia 1.5748 40.00MM
Flutes/Inserts 3
Tool Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 9
Performance & Capacity
Cut Dia Min 0.6800 17.27MM
Depth Of Cut Max 0.8270
Cut Dia Max 1.5000 38.10MM - 1-1/2
Max Ramp Angle 5.00°
Materials & Finish
Tool Material Steel
