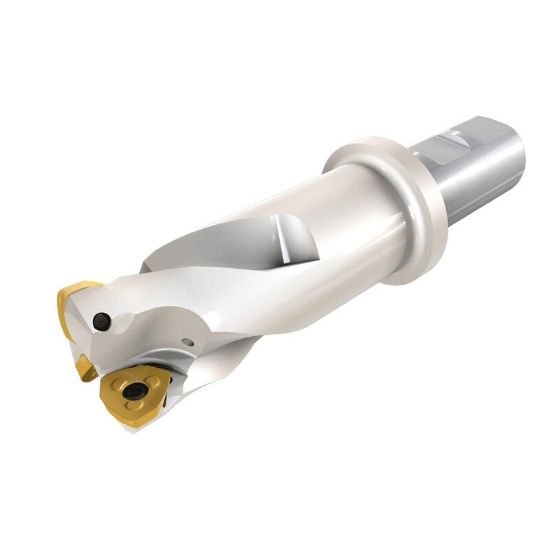

Picture of Iscar FF EW D1.25-4.0-W1.0-06-C Milling Cutter 1.250 Diameter Weldon 1.000 6.760 OAL 3 Flute

Iscar FF EW D1.25-4.0-W1.0-06-C Milling Cutter 1.250 Diameter Weldon 1.000 6.760 OAL 3 Flute

Part Number: ISC3103449 ISO: FF EW D1.25-4.0-W1.0-06-C ANSI:FF EW D1.25-4.0-W1.0-06-C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012046
Vendor: Sussex Tool and Supply
$456.30
ISCAR 3103449 Trigon Feed Mill End Mill Weldon 1.0000 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Tool Material Steel
Machine Side Connection Type Weldon
Mach Side Connection Size 1.0000 25.40MM
Overall Length 6.7600 171.70MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Type Of Tool End Mill
Insert/Tool TOOL
Insert Application General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Insert Size Ic 6
Cut Dia Min 0.7000 17.78MM
Coolant Type Through Hole
Depth Of Cut Max 0.3150
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Screw 7002000
Max Ramp Angle 4.00°
