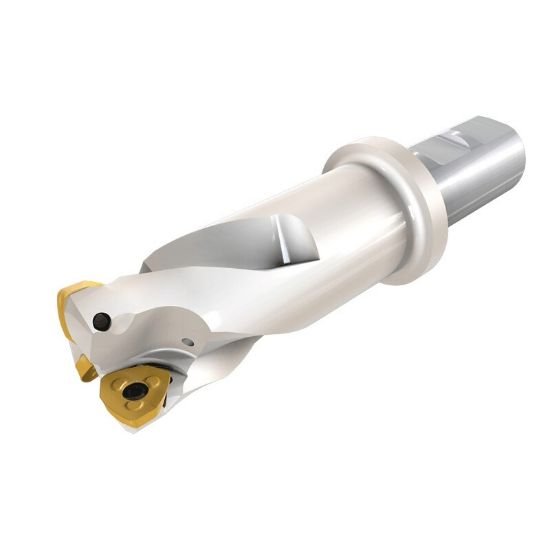

Picture of Iscar FF EW D1.25-2.5-W1.0-06-C Milling Cutter 1.250 Diameter Weldon 1.000 5.260 OAL 3 Flute

Iscar FF EW D1.25-2.5-W1.0-06-C Milling Cutter 1.250 Diameter Weldon 1.000 5.260 OAL 3 Flute

Part Number: ISC3103448 ISO: FF EW D1.25-2.5-W1.0-06-C ANSI:FF EW D1.25-2.5-W1.0-06-C
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1012045
Vendor: Sussex Tool and Supply
$464.64

Description

ISCAR 3103448 Trigon Feed Mill End Mill Weldon 1.0000 Positive 1.2500 31.75MM - 1-1/4Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Indexable Feed Mill
Coolant Thru Thru Coolant
Type Of Tool End Mill
Insert/Tool TOOL
Cut Type General Purpose
Insert Style FF
Insert Shape/Cutter Pocket Shape TRIGON
Insert Type Positive
Coolant Type Through Hole
Insert Screw 7003185
Dimensions & Sizing
Overall Length 5.2600 133.60MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 6
Performance & Capacity
Cut Dia Min 0.7000 17.78MM
Depth Of Cut Max 0.0510
Cut Dia Max 1.2500 31.75MM - 1-1/4
Max Ramp Angle 4.00°
Materials & Finish
Tool Material Steel
