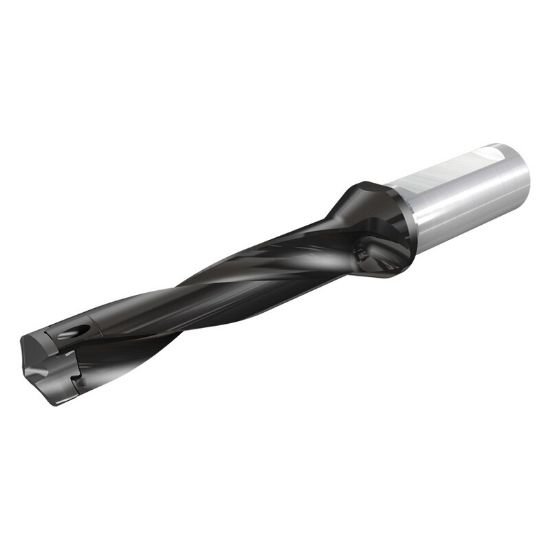

Picture of Iscar FCM 0591-177-075A-3D 0.591" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Iscar FCM 0591-177-075A-3D 0.591" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Part Number: ISC3325798 ISO: FCM 0591-177-075A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112090
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3325798 0.591" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.7500 19.05MM
Overall Length 4.5500 115.57MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Tool Dia 0.5906 15.00MM
Type Of Tool Drill
Flute Length 1.7700 44.96MM
Cut Dia Min 0.5906 15.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
