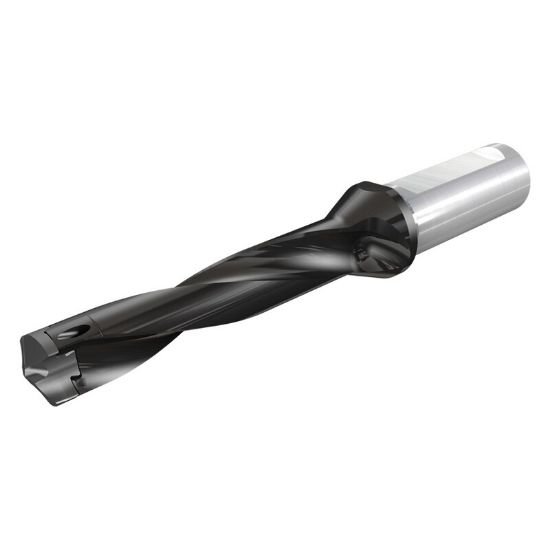

Picture of Iscar FCM 0512-153-063A-3D 0.512" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Iscar FCM 0512-153-063A-3D 0.512" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Part Number: ISC3325788 ISO: FCM 0512-153-063A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112082
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3325788 0.512" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.1100 104.39MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.5118 13.00MM
Type Of Tool Drill
Flute Length 1.5300 38.86MM
Cut Dia Min 0.5118 13.00MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5280 13.41MM
