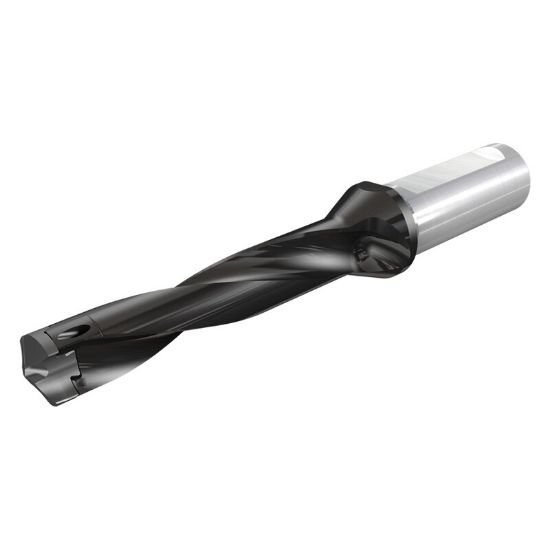

Picture of Iscar FCM 0492-147-063A-3D 0.492" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Iscar FCM 0492-147-063A-3D 0.492" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD

Part Number: ISC3325786 ISO: FCM 0492-147-063A-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1112080
Vendor: Sussex Tool and Supply
$0.00
ISCAR 3325786 0.492" Indexable Head Drills with Coolant Holes and One Flat Shanks, Drilling Depth 3xD Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Drill
Tool Material Steel
Machine Side Connection Type Boring Bar, Weldon
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0100 101.85MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.4921 12.50MM
Type Of Tool Drill
Flute Length 1.4700 37.34MM
Cut Dia Min 0.4921 12.50MM
Dia Deep 3.0x Dia
Drill Type Indexable Drill
Type Indexable Drill Single Insert
Cut Dia Max 0.5080 12.90MM
