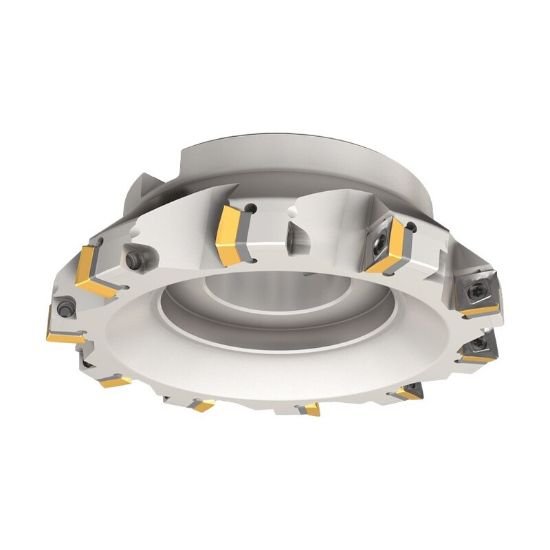

Picture of Iscar F90SD D5.00-1.5-12 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.380 OAL 9 Flute

Iscar F90SD D5.00-1.5-12 Milling Cutter 90.0° 5.000 Diameter Face Mill 1.500 2.380 OAL 9 Flute

Part Number: ISC3100493 ISO: F90SD D5.00-1.5-12 ANSI:F90SD D5.00-1.5-12
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1011760
Vendor: Sussex Tool and Supply
$1,459.20

Description

ISCAR 3100493 Square 90.0°, Face Mill SHELL1.5000 Positive 5.0000 127.00MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000402
Dimensions & Sizing
Overall Length 2.3800 60.45MM
Flutes/Inserts 9
Tool Dia 5.0000 127.00MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 5.0000 127.00MM
Depth Of Cut Max 0.6020
Cut Dia Max 5.0000 127.00MM
Materials & Finish
Tool Material Steel
