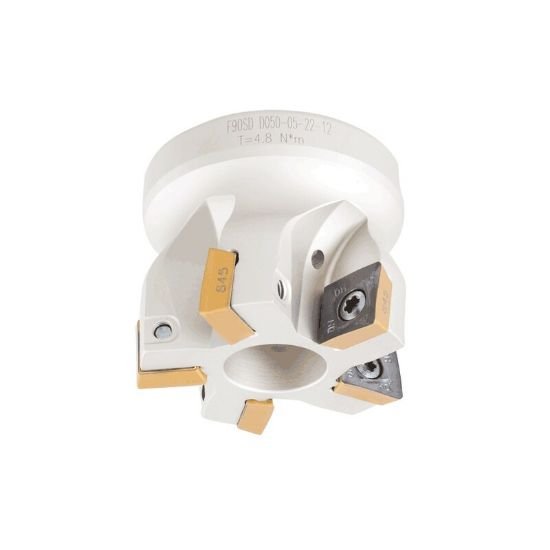

Picture of Iscar F90SD D2.50-04-1.00-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

Iscar F90SD D2.50-04-1.00-12 Milling Cutter 90.0° 2.500 Diameter Face Mill 1.000 1.750 OAL 4 Flute

Part Number: ISC3319831 ISO: F90SD D2.50-04-1.00-12 ANSI:F90SD D2.50-04-1.00-12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1012827
Vendor: Sussex Tool and Supply
$628.20
ISCAR 3319831 Square 90.0°, Face Mill SHELL1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Mach Side Connection Size 1.0000 25.40MM
Overall Length 1.7500 44.45MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Insert Application Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Insert Size Ic 12
Cut Dia Min 2.5000 63.50MM - 2-1/2
Coolant Type Through Hole
Depth Of Cut Max 0.4650
Cut Dia Max 2.5000 63.50MM - 2-1/2
Insert Screw 7006977
Cutting Edge Angle 90.0°
