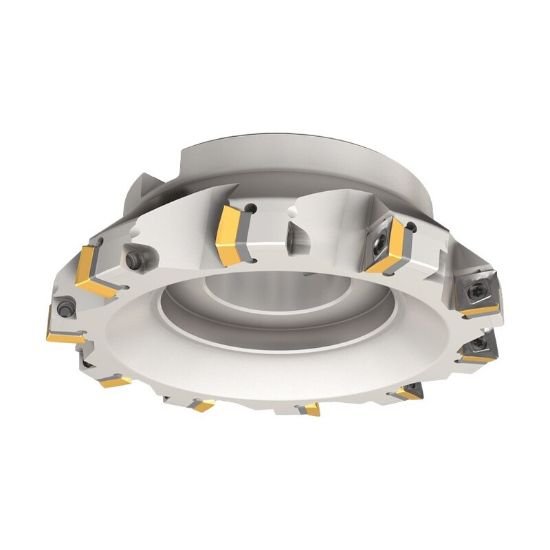

Picture of Iscar F90SD D2.00-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Iscar F90SD D2.00-.75-12 Milling Cutter 90.0° 2.000 Diameter Face Mill 0.750 1.570 OAL 5 Flute

Part Number: ISC3100490 ISO: F90SD D2.00-.75-12 ANSI:F90SD D2.00-.75-12
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1011758

Description

ISCAR 3100490 Square 90.0°, Face Mill SHELL0.7500 Positive 2.0000 50.80MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Face Mill
Coolant Thru Non Coolant
Type Of Tool Face / Shell Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style SD
Insert Shape/Cutter Pocket Shape Square
Insert Type Positive
Coolant Type External
Insert Screw 7000402
Dimensions & Sizing
Overall Length 1.5700 39.88MM
Flutes/Inserts 5
Tool Dia 2.0000 50.80MM
Insert Size Ic 12
Geometry & Angles
Cutting Edge Angle 90.0°
Performance & Capacity
Cut Dia Min 2.0000 50.80MM
Depth Of Cut Max 0.4650
Cut Dia Max 2.0000 50.80MM
Materials & Finish
Tool Material Steel
